MODEL

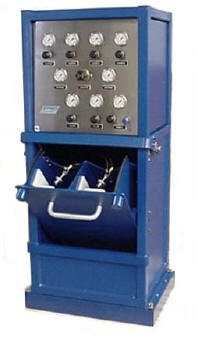

HPE6000 CLASS 2 CONTAINMENT CYLINDER FILL ENCLOSURE
 ENCLOSED
FILL STATION & AIR MANAGEMENT SYSTEM
The HPE6000 Cylinder Fill Enclosure fills
up to two cylinders at once. Explosion protection enclosure
provides increased safety, only operating when the door is
closed. (Reference CGA pamphlet G-7-1989, Compressed Air for
Human Respiration, Section 7).
Featuring a door with safety interlock and tilting cylinder
container make loading and unloading easy. Teflon slides on
cylinder holders protect cylinders from scuffing. Fill hoses
are designed for easy connection and are inside the enclosure
for increased safety.
Model HPE6000Standard Features:
- Gauges for each storage cylinder (4)
- Control valves for each storage cylinder
(4)
- Adjustable pressure regulator (6000 to
5000 psi)
- Inlet pressure gauge
- Regulated pressure gauge
- 2 fill control valves
- 2 fill pressure gauges
- 1 pressure relief valve (for regulated
fill pressure)
- Connecting lines to the fill station for
each storage cylinder (4)
- 2 fill hoses complete with line valve,
stainless bleed valves and SCBA fill adaptors
 Designed
to contain the destructive force of accidental cylinder rupture
or hose failure, while allowing the air blast to be vented
quickly and in a direction away from the operator.
A safety interlock prevents SCBA or SCUBA filling unless the
front access door is completely closed and locked in place.
The carriage design "tilts" toward the operator
whenever the door is opened. This facilitates loading and
unloading cylinders and minimizes operator fatigue.
